Implement
110 - VACUUM SYSTEMS( ВАКУУМНЫЕ СИСТЕМЫ)

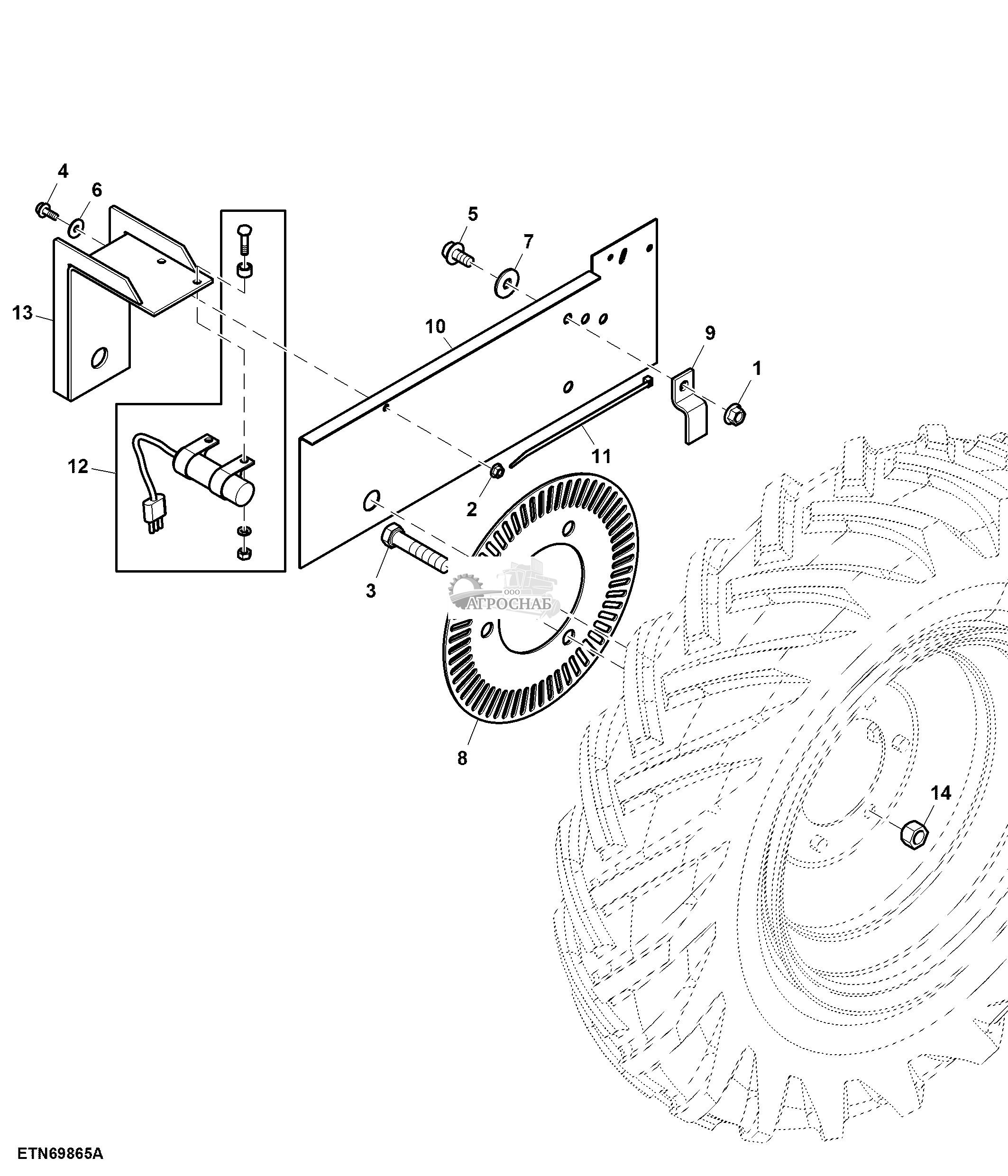

Wheel Speed Sensor and Disk(Датчик скорости вращения колеса и диска)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 14M7296 | Flange Nut | 1 | M10 | ||
| 2 | 14M7303 | Flange Nut | 1 | M6 | ||
| 3 | 19H3775 | Cap Screw | 3 | 9/16" X 2-3/4" | ||
| 4 | 19M7775 | Screw | 1 | M6 X 16 | ||
| 5 | 19M7784 | Screw | 1 | M10 X 20 | ||
| 6 | 24H1890 | Washer | 3 | 19/32" X 1" X 1/4" | ||
| 7 | 24M7178 | Washer | 1 | 10.500 X 30 X 2.500 mm | ||
| 8 | A58902 | Disk | 1 | |||
| 9 | A60071 | Clip | 1 | |||
| 10 | A60863 | Shield | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | A78364 | Tie Band | 3 | |||
| 12 | AA87245 | Wheel Speed Sensor | 1 | SUB FOR AA47937 ; Hall E ffect, High Gain; Smooth | ||
| AA93261 | Wheel Speed Sensor | 1 | Hall Effect, Low Gain | |||
| 13 | AA64860 | Support | 1 | |||
| 14 | K38200 | Nut | 3 |

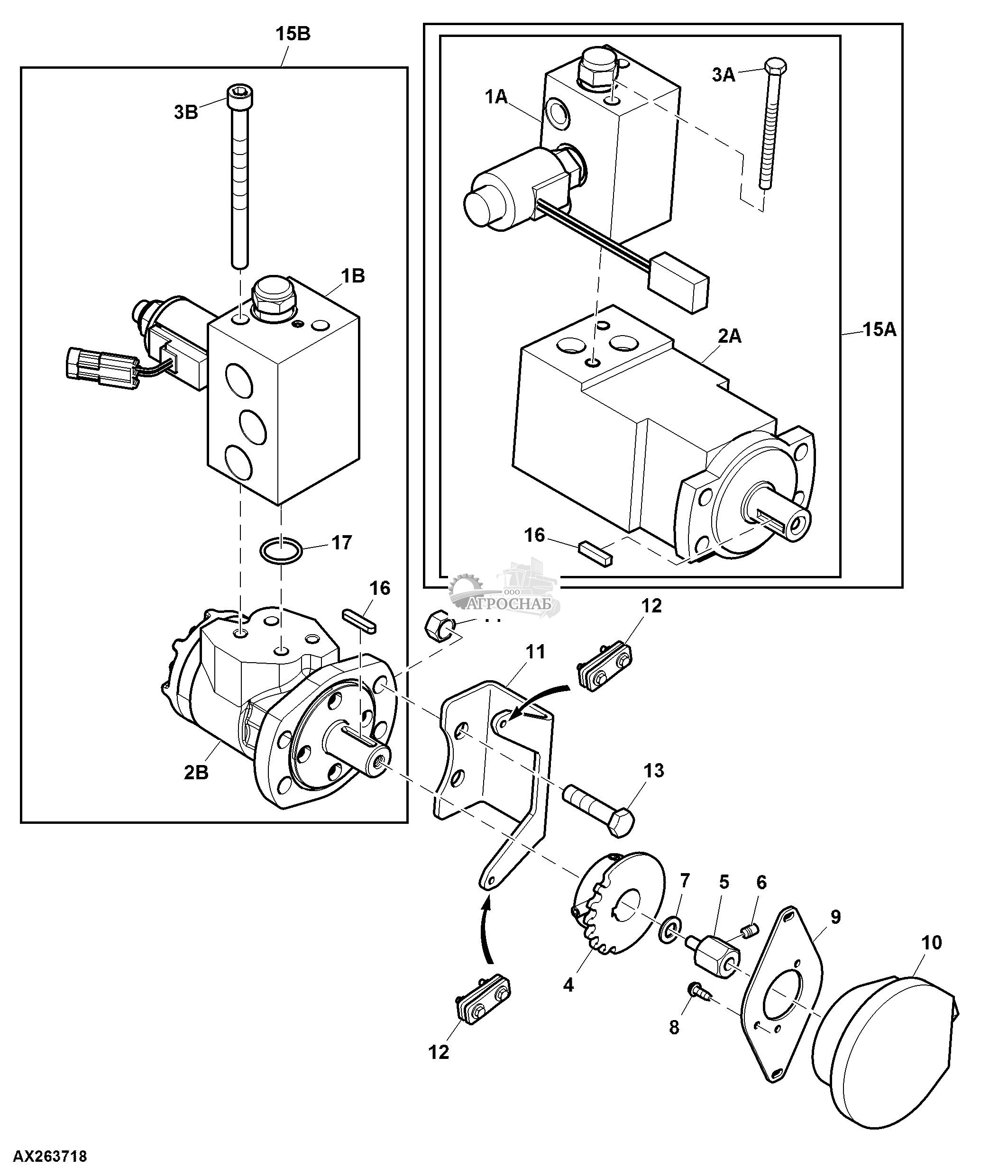

Variable Rate Drive Motor / Sensor W/ Hardware(Переменная Скорость Привод Оборудования Двигателя Датчик W )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1A | AA43716 | Flow Control Hyd. Valve | 1 | ORDER AA86353 | ||
| 1B | AA86353 | Hydraulic Pressure Valve | 1 | |||
| 2A | AA43717 | Hydraulic Motor | 1 | 50 cc, ORDER AA87097 | ||
| 2B | AA87097 | Hydraulic Motor | 1 | |||
| 3A | N275275 | Cap Screw | 2 | USE WITH AA43716 | ||
| 3B | A105836 | Socket Head Screw | 2 | USE WITH AA86353 | ||
| 4 | AA44118 | Chain Sprocket | 1 | Z = 18 | ||
| 5 | A72405 | Adapter Fitting | 1 | |||
| 6 | 22M7072 | Set Screw | 1 | M6 X 10 | ||
| 7 | 24M7040 | Washer | 1 | 11 X 20 X 2 mm | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 8 | A71185 | Screw | 3 | |||
| 9 | A72320 | Strap | 1 | |||
| 10 | AA54557 | Wheel Speed Sensor | 1 | Application Rate | ||
| 11 | A72321 | Bracket | 1 | |||
| 12 | AA55985 | Hardware Kit | 1 | |||
| 13 | 19M7073 | Cap Screw | 4 | M12 X 50 | ||
| 14 | 14M7275 | Nut | 4 | M12 | ||
| 15A | AA47148 | Hydraulic Motor | 1 | ORDER AA87098 | ||
| 15B | AA87098 | Hydraulic Motor | 1 | |||
| 16 | N119457 | Key | 2 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 17 | R116032 | O-Ring | 4 |

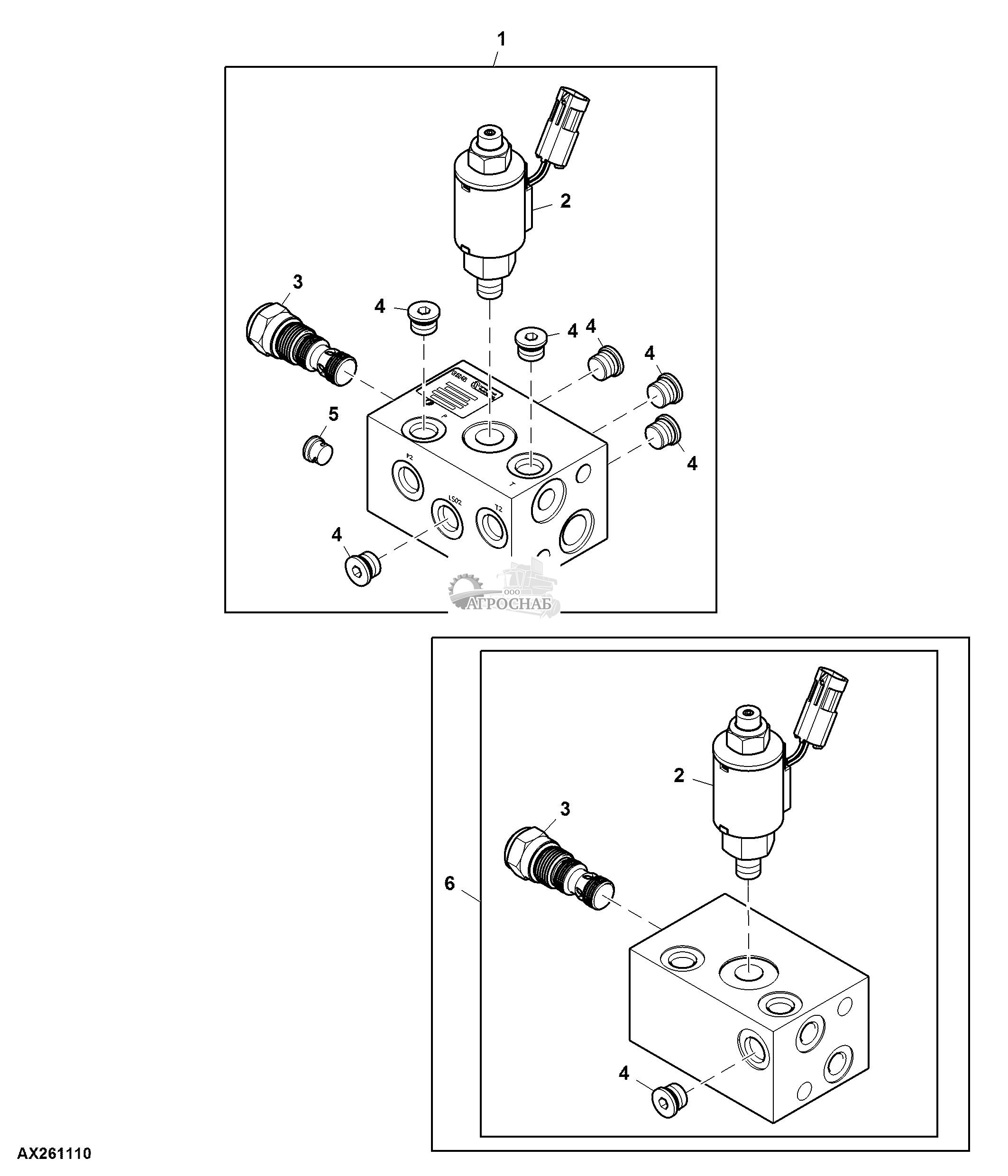

Hydraulic Pressure Valve, Variable Rate Drive Motor(Гидравлический Клапан Давления Переменный Привод Частота Двигателя)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA86353 | Hydraulic Pressure Valve | 1 | |||
| 2 | AA46691 | Hydraulic Pressure Valve | 1 | |||
| AN276878 | Seal Kit | 1 | ||||
| 3 | AA87772 | Flow Control Hyd. Valve | 1 | |||
| CB11465869 | Seal Kit | 1 | ||||
| 4 | A73182 | Pipe Plug | 6 | USE WITH AA86353 | ||
| A73182 | Pipe Plug | 1 | USE WITH AA43716 | |||
| 5 | RE319427 | Check Valve | 1 | |||
| 6 | AA43716 | Hydraulic Pressure Valve | 1 |

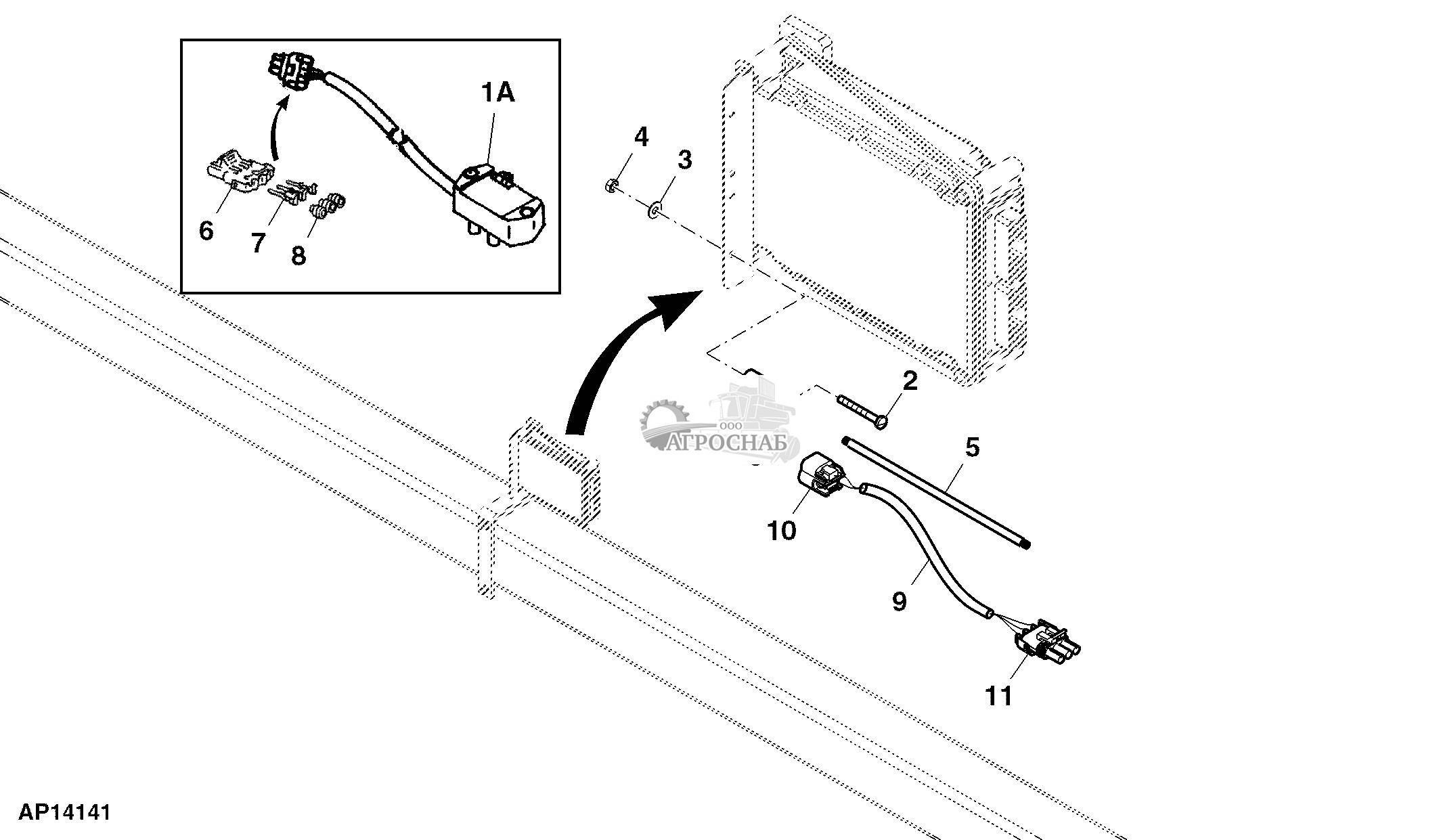

Vacuum Sensor Harness(Вакуумный Датчик Проводов)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1A | AA39546 | Sensor | 1 | ORDER AA77575 AND AA77577 | ||
| 1B | AA77575 | Sensor | 1 | |||
| 2 | 21M7345 | Screw | 2 | M3 X 25 USE WITH AA39546 | ||
| 21H1339 | Screw | 2 | 0.138" X 7/8" USE WITH AA77575 | |||
| 3 | 12H353 | Lock Washer | 2 | 0.138" | ||
| 4 | 14M7196 | Nut | 2 | M3 | ||
| 5 | ...... | Tube | 1 | CTL 3658 mm, MF TY22420 | ||
| 6 | RE12364 | Electrical Connector Assy | 1 | USE WITH AA39546 | ||
| 7 | R78057 | Elec. Connector Terminal | 1 | USE WITH AA39546 | ||
| 8 | R78059 | Electrical Connector Assy | 1 | USE WITH AA39546 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 9 | AA77577 | Monitor Wiring Harness | 1 | USE WITH AA77575 Extension | ||
| 10 | 57M9581 | Elec. Connector Housing | 1 | Connection 1 | ||
| 57M9447 | Elec.Connect Locking Device | 1 | Connection 1 | |||
| 11 | RE12364 | Electrical Connector Assy | 1 | Connection 2 |

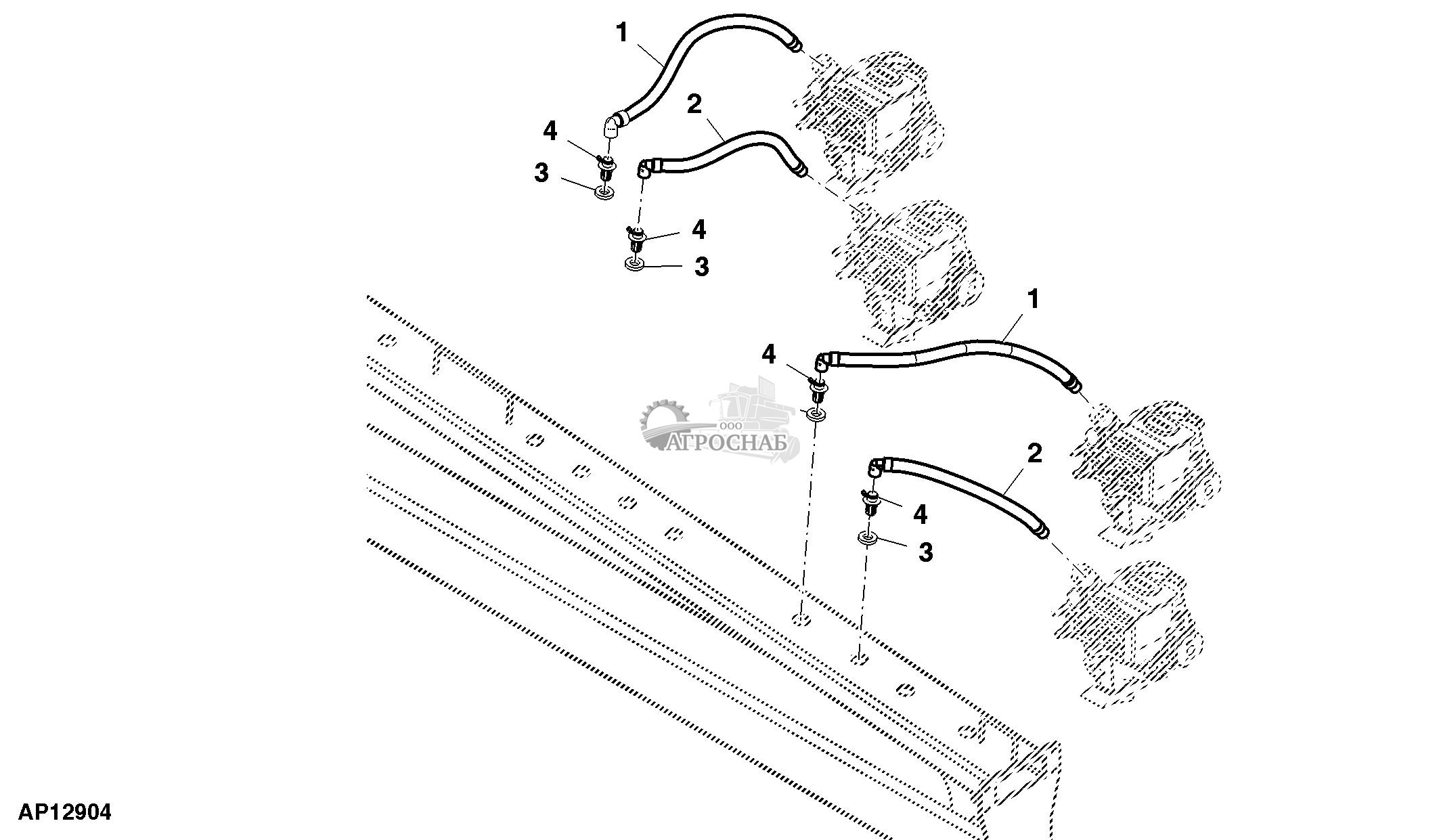

Hose, Row Unit Vacuum(Шланг Вакуумного Блока Подряд)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA74218 | Hose | 6 | |||
| 2 | AA75810 | Hose | 6 | |||
| 3 | A71449 | Packing | 12 | |||
| 4 | A71321 | Fitting | 12 |

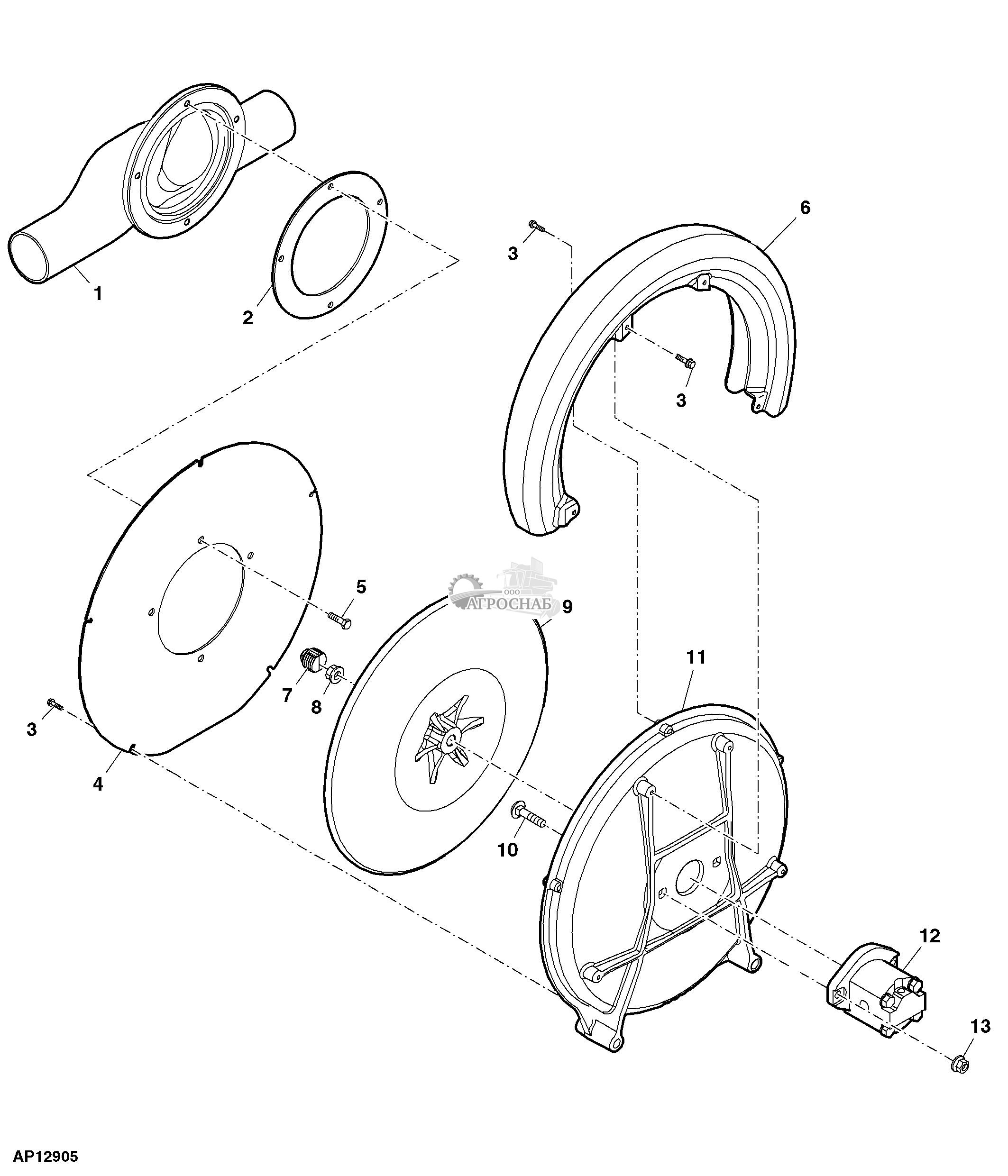

Vacuum Blower, W/ Hydraulic Bypass Loop ( - 745100)(Вакуумные Воздуходувки W-Гидравлическое Обхода Контура )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA59424 | Air Intake | 1 | |||
| 2 | A77015 | Seal | 1 | |||
| 3 | 37M7131 | Screw | 9 | M6 X 20 | ||
| 4 | A77017 | Housing | 1 | |||
| 5 | 19M7139 | Cap Screw | 4 | M8 X 20 | ||
| 6 | A78091 | Shroud | 1 | |||
| 7 | A76179 | Plug | 1 | |||
| 8 | E69392 | Nut | 1 | |||
| 9 | A81304 | Impeller | 1 | |||
| 10 | 03M7193 | Bolt | 2 | M10 X 35 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | A77016 | Housing | 1 | |||
| 12 | AA66344 | Motor | 1 | NLA; ORDER AA74707 | ||
| AA68404 | Seal Kit | 1 | ||||
| 13 | 14M7400 | Lock Nut | 2 | M10 |

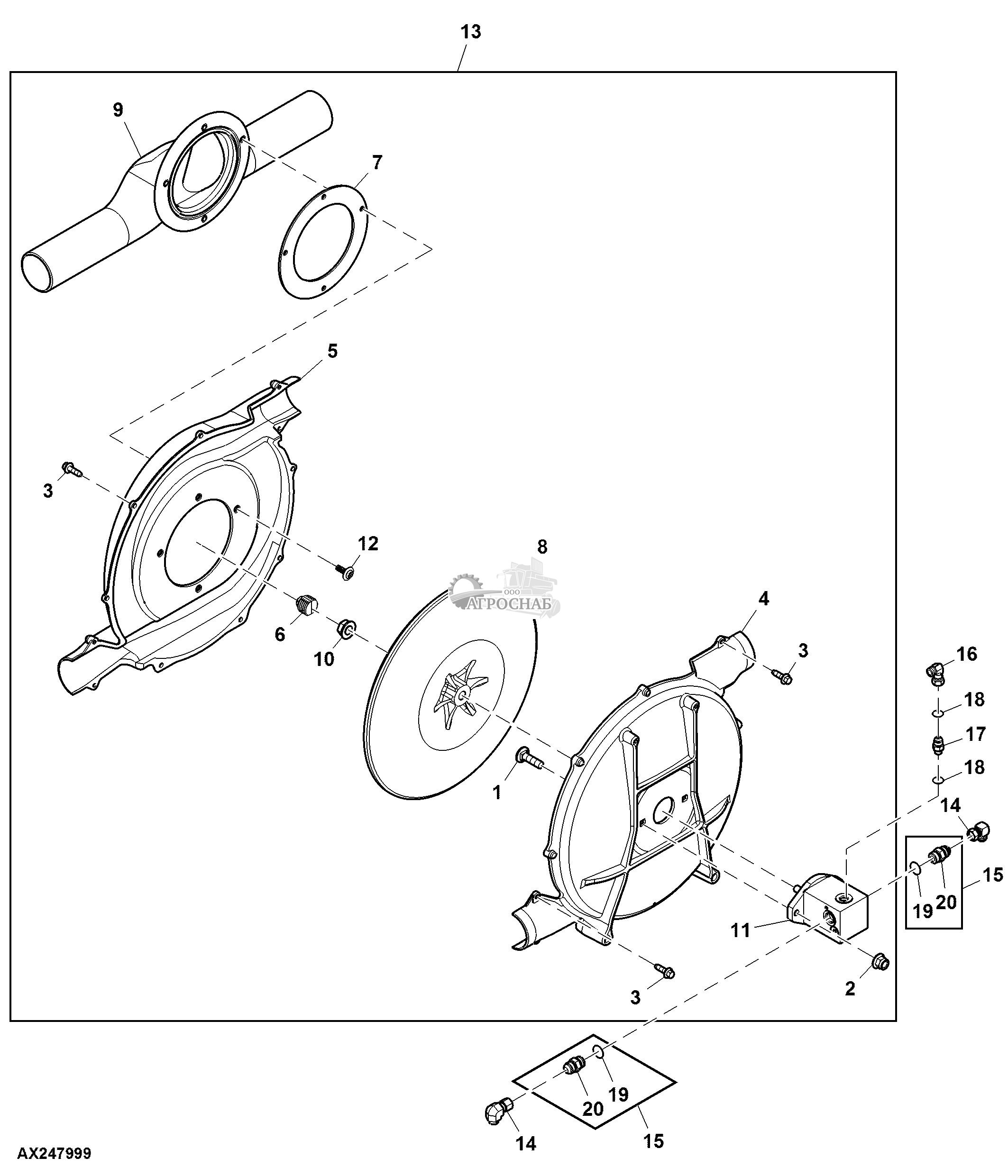

Vacuum Blower (765101 - ), ( - 780100)(Вакуумные Воздуходувки )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 03M7193 | Bolt | 2 | M10 X 35 | ||
| 2 | 14M7400 | Lock Nut | 2 | M10 | ||
| 3 | 37M7131 | Screw | 11 | M6 X 20 | ||
| 4 | A100675 | Housing | 1 | Back Housing | ||
| 5 | A100676 | Housing | 1 | Front Housing | ||
| 6 | A76179 | Plug | 1 | |||
| 7 | A77015 | Seal | 1 | |||
| 8 | A81304 | Impeller | 1 | |||
| 9 | AA85726 | Air Intake | 1 | SUB FOR AA59424, Air In take, Intake Manifold 6" | ||
| AA85725 | Air Intake | 1 | SUB FOR AA85723, Air In take, Intake Manifold 1" | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 10 | E69392 | Nut | 1 | |||
| 11 | AA84088 | Hydraulic Motor | 1 | |||
| 12 | A102326 | Bolt | 4 | |||
| 13 | AA85765 | Blower | 1 | |||
| 14 | AH75164 | Elbow Fitting | 2 | |||
| 15 | AW21857 | Fitting | 2 | |||
| 16 | AE24616 | Elbow Fitting | 1 | |||
| 17 | R27212 | Fitting | 1 | |||
| 18 | R26448 | O-Ring | 2 | |||
| 19 | R26375 | O-Ring | 2 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 20 | R27237 | Fitting | 2 |
Hydraulic Motor(Гидравлический Мотор)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA79181 | Check Valve | 1 | USE WITH AA74707 OR AA84088 | ||
| 2 | AA79182 | Seal Kit | 1 | USE WITH AA74707 | ||
| AA84138 | Seal Kit | 1 | USE WITH AA84088 | |||
| 3 | AA79183 | Bolt Kit | 1 | USE WITH AA74707 | ||
| AA84139 | Bolt Kit | 1 | USE WITH AA84088 | |||
| 4 | AA74707 | Motor | 1 | ORDER AA84088 | ||
| AA84088 | Hydraulic Motor | 1 |

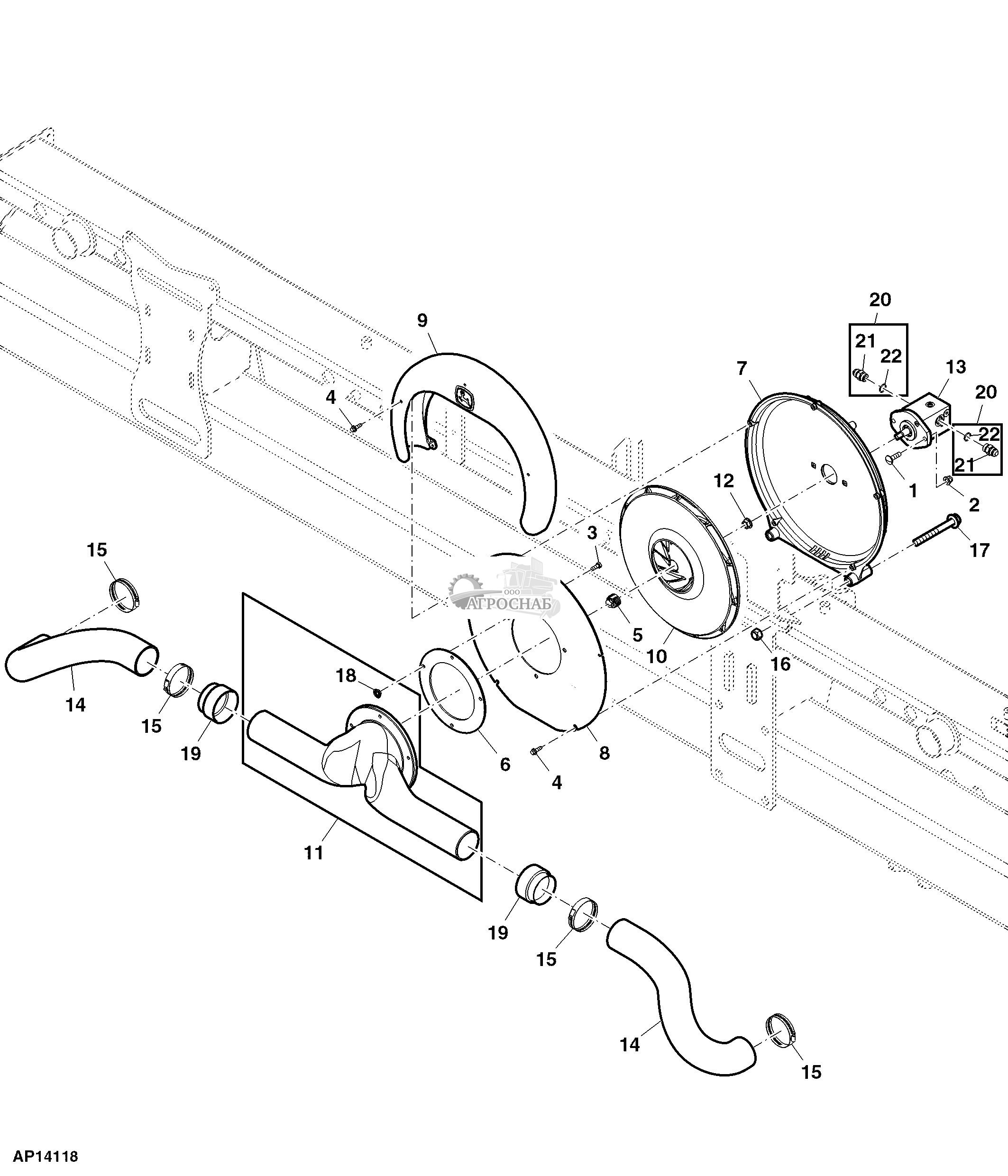

Vacuum Blower Assembly, Full Length(Вакуумный Агрегат Воздуходувки Полная Длина)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 03M7193 | Bolt | 2 | M10 X 35 | ||
| 2 | 14M7400 | Lock Nut | 2 | M10 | ||
| 3 | 19M7139 | Cap Screw | 4 | M8 X 20 | ||
| 4 | 37M7131 | Screw | 9 | M6 X 20 | ||
| 5 | A76179 | Plug | 1 | |||
| 6 | A77015 | Seal | 1 | |||
| 7 | A77016 | Housing | 1 | |||
| 8 | A77017 | Housing | 1 | |||
| 9 | A78091 | Shroud | 1 | |||
| 10 | A81304 | Impeller | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | AA59424 | Air Intake | 1 | |||
| 12 | E69392 | Nut | 1 | |||
| 13 | AA74707 | Motor | 1 | SUB FOR AA66344; INCLUDES A A79181, AA79182 AND AA79183 | ||
| 14 | A66761 | Hose | 2 | |||
| 15 | A101923 | Hose Clamp | AR | |||
| 16 | 14M7299 | Flange Nut | 2 | M12 | ||
| 17 | 19M8158 | Screw | 2 | M12 X 120 | ||
| 18 | ...... | Nut | 4 | |||
| 19 | H137513 | Boot | 2 | |||
| 20 | AW21857 | Fitting | 2 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | R27237 | Fitting | 2 | |||
| 22 | R26375 | O-Ring | 2 |

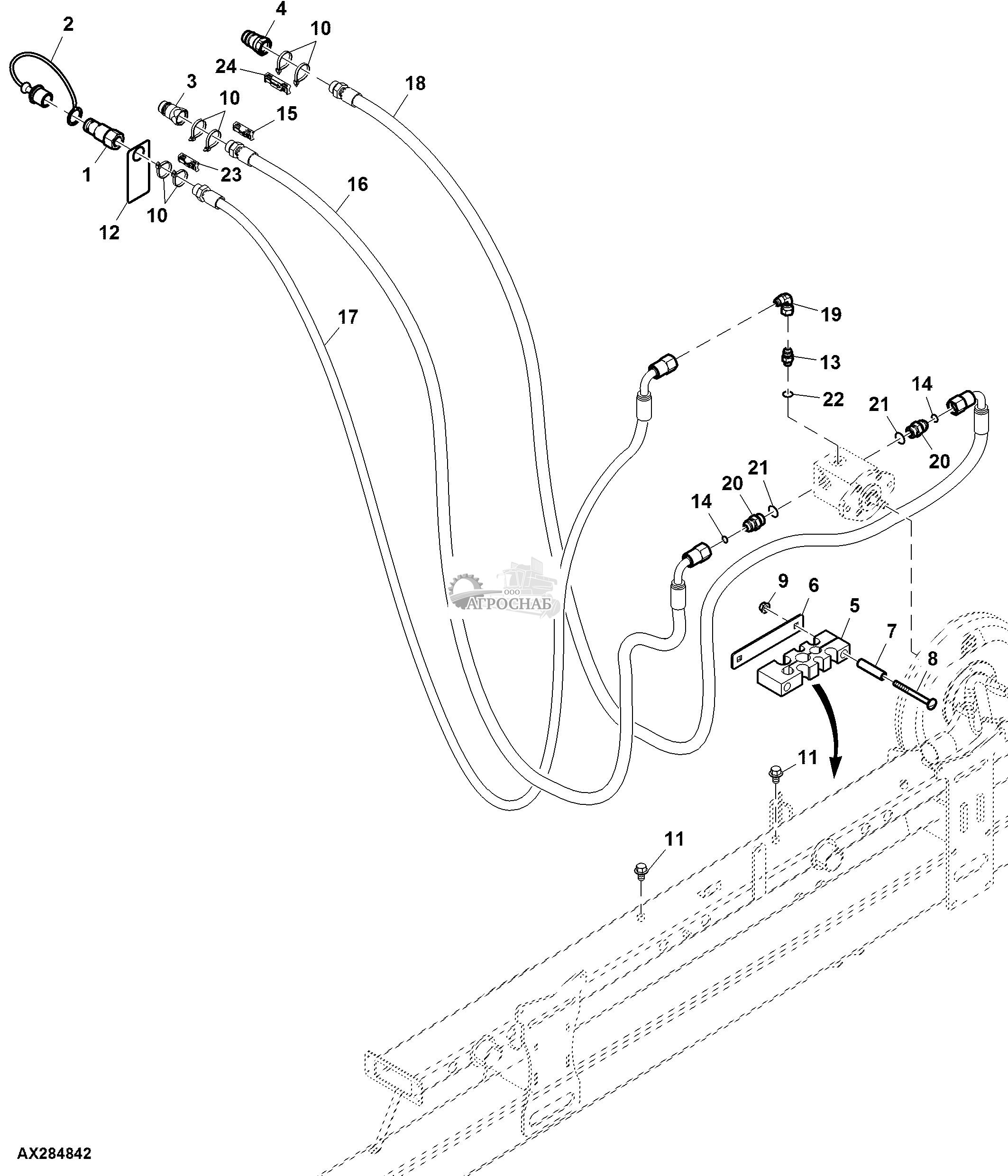

Single Vacuum Blower Hoses W/O Bypass Loop(Один вакуум воздуходувки шланги ВУ обхода блокировки петли)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA59671 | Hydr. Quick Coupler Plug | 1 | |||
| 2 | A79901 | Plug | 1 | |||
| 3 | AR94522 | Hydr. Quick Coupler Plug | 1 | |||
| 4 | AA59411 | Hyd. Quick-Connect Coupler | 1 | |||
| 5 | A90500 | Clamp | 1 | |||
| 6 | A88987 | Plate | 1 | |||
| 7 | A102129 | Spacer | 2 | |||
| 8 | 03M7373 | Bolt | 2 | M8 X 85 | ||
| 9 | 14M7298 | Flange Nut | 2 | M8 | ||
| 10 | H77698 | Tie Band | 6 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | 19M7783 | Screw | 6 | M10 X 16 | ||
| 12 | A79270 | Label | 1 | |||
| 13 | R27212 | Fitting | 1 | |||
| 14 | T77857 | O-Ring | 2 | |||
| 15 | ...... | Tag | 1 | (A) (B) ORDER AA78772 | ||
| 16 | AA78080 | Hydraulic Hose | 1 | Vacuum Hose Case Drain | ||
| 17 | AA76865 | Hydraulic Hose | 1 | Vacuum Hose Pressure | ||
| 18 | AA76866 | Hydraulic Hose | 1 | Vacuum Hose Return | ||
| 19 | AE24616 | Elbow Fitting | 1 | |||
| 20 | 38H1161 | Adapter Fitting | 2 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | R26375 | O-Ring | 2 | |||
| 22 | R26448 | O-Ring | 1 | |||
| 23 | ...... | Tag | 1 | (A) (C) ORDER AA78772 | ||
| 24 | ...... | Tag | 1 | (C) (D) ORDER AA78772 |

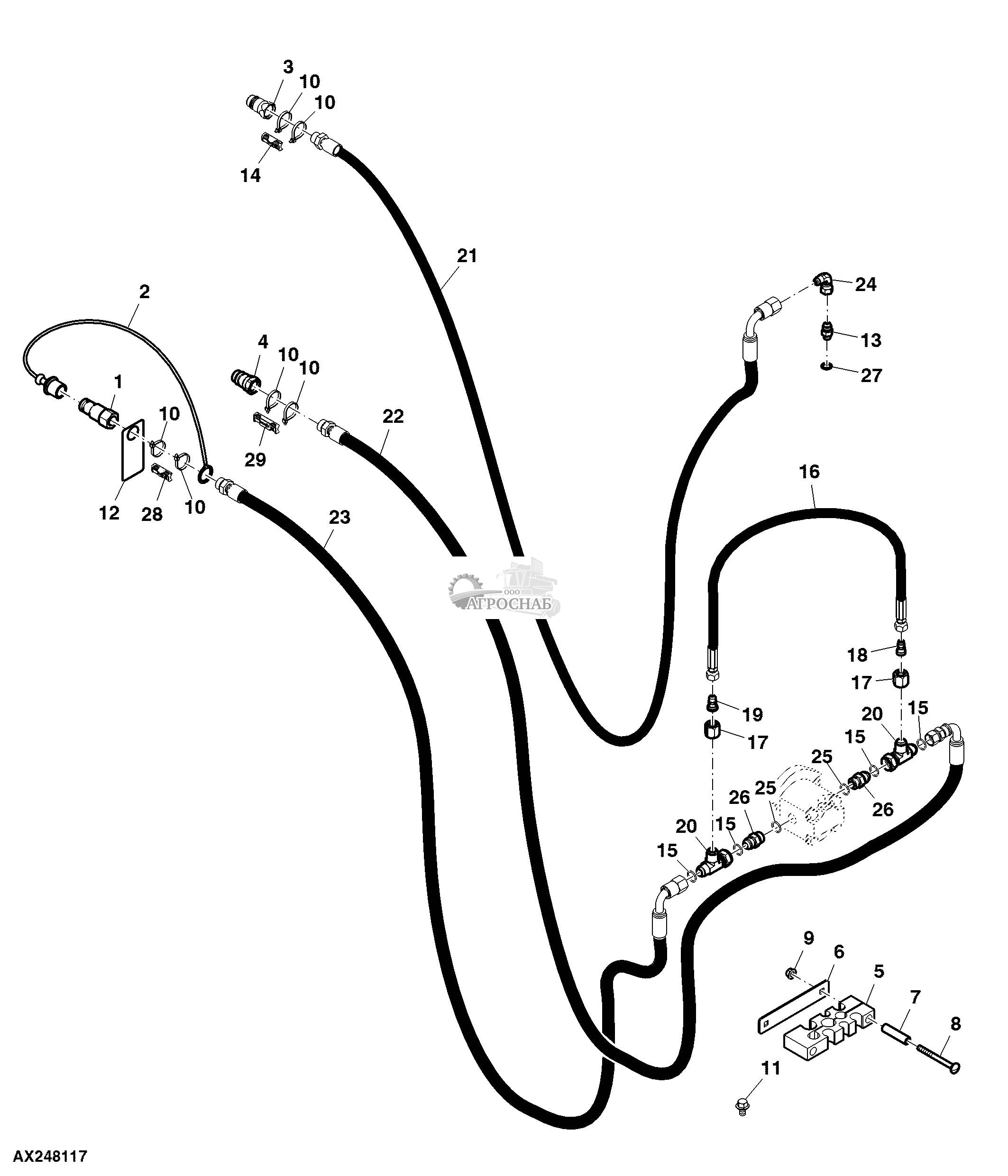

Vacuum Blower, Single, W/ Hydraulic Bypass Loop(Вакуумные Воздуходувки Одиночной W-Гидравлическое Обхода Блокировки Петли)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA59671 | Hydr. Quick Coupler Plug | 1 | |||
| 2 | A79901 | Plug | 1 | |||
| 3 | AR94522 | Hydr. Quick Coupler Plug | 1 | |||
| 4 | AA59411 | Hyd. Quick-Connect Coupler | 1 | |||
| 5 | A90500 | Clamp | 1 | |||
| 6 | A88987 | Plate | 1 | |||
| 7 | 28H3475 | Spacer | 2 | 0.364" X 0.540" X 2-1/8" | ||
| 8 | 03M7373 | Bolt | 2 | M8 X 85 | ||
| 9 | 14M7298 | Flange Nut | 2 | M8 | ||
| 10 | H77698 | Tie Band | 6 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | 19M7783 | Screw | 6 | M10 X 16 | ||
| 12 | A79270 | Label | 1 | |||
| 13 | T61120 | Adapter Fitting | 2 | |||
| 14 | ...... | Tag | 1 | (A) (B) ORDER AA78772 | ||
| 15 | R26375 | O-Ring | 4 | |||
| 16 | AA76982 | Hydraulic Hose | 1 | |||
| 17 | T25462 | Tube Nut | 2 | |||
| 18 | A52993 | Reducer | 1 | |||
| 19 | A52994 | Fitting | 1 | |||
| 20 | AN33434 | Tee Fitting | 2 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | AA78080 | Hydraulic Hose | 1 | |||
| 22 | AA76866 | Hydraulic Hose | 1 | |||
| 23 | AA76865 | Hydraulic Hose | 1 | |||
| 24 | AE24616 | Elbow Fitting | 1 | |||
| 25 | T77857 | O-Ring | 2 | |||
| 26 | 38H1161 | Adapter Fitting | 2 | |||
| 27 | R26448 | O-Ring | 1 | |||
| 28 | ...... | Tag | 1 | (A) (C) ORDER AA78772 | ||
| 29 | ...... | Tag | 1 | (C) (D) ORDER AA78772 |

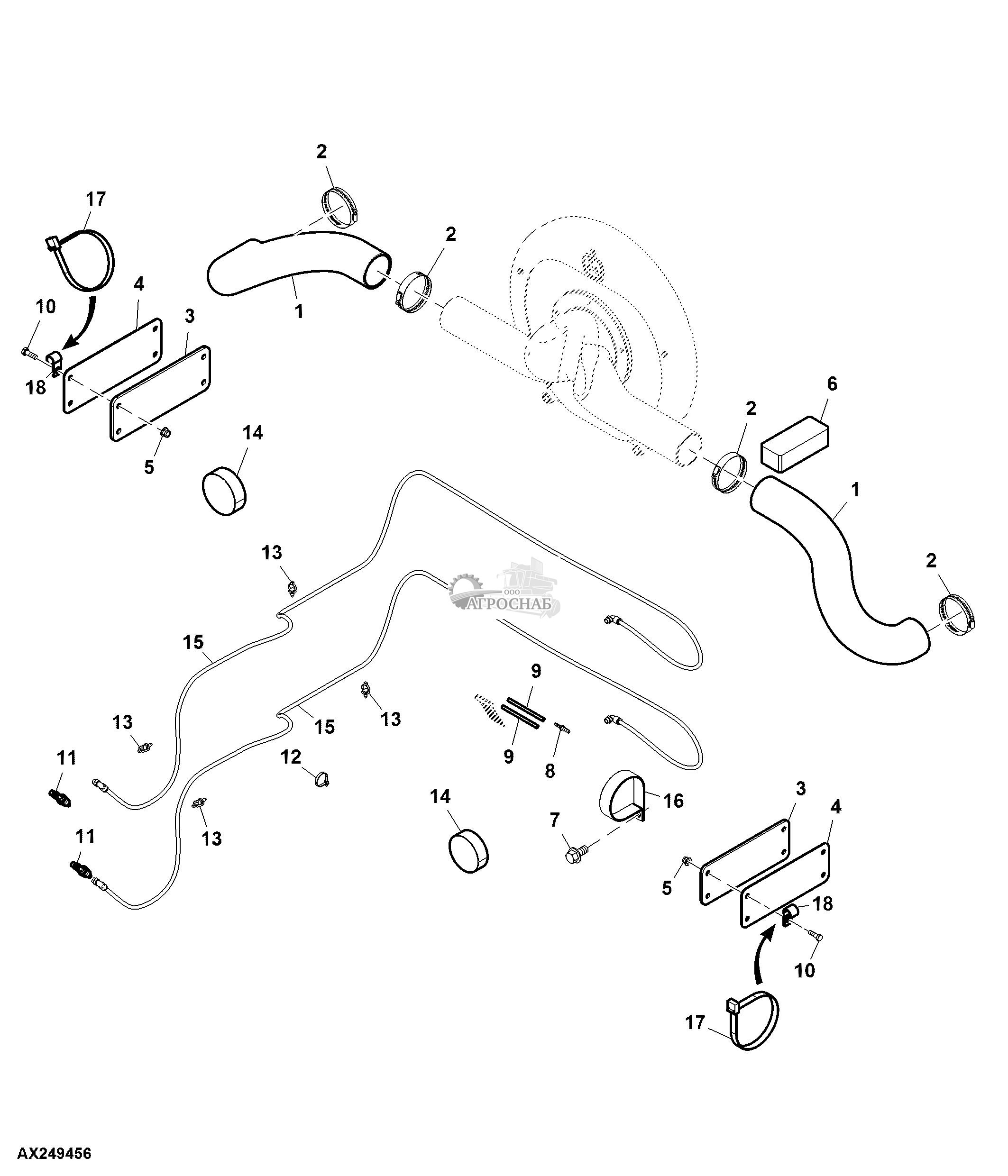

Hoses and Fittings, Vacuum blower(Шланги и вакуумные воздуходувки)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | ...... | Hose | 4 | CTL AR, MF A66761 | ||
| 2 | A101923 | Hose Clamp | 8 | |||
| 3 | A72755 | Gasket | 2 | |||
| 4 | A72754 | Plate | 2 | |||
| 5 | 14M7396 | Lock Nut | 8 | M8 | ||
| 6 | A115647 | Isolator | 2 | SUB FOR A73254 | ||
| 7 | 19M7784 | Screw | 2 | M10 X 20 | ||
| 8 | A54274 | Hose Fitting | 2 | |||
| 9 | A81338 | Tube | 4 | |||
| 10 | 19M7163 | Cap Screw | 8 | M8 X 25 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | AA37862 | Hose Fitting | 2 | |||
| 12 | H77698 | Tie Band | 8 | |||
| 13 | RE258807 | Tie Band | 8 | |||
| 14 | A76644 | Cap | 2 | |||
| 15 | TY22420 | Bulk Hose | 2 | |||
| 16 | N302180 | Clamp | 2 | |||
| 17 | A104573 | Tie Band | 2 | |||
| 18 | R46414 | Clamp | 2 |

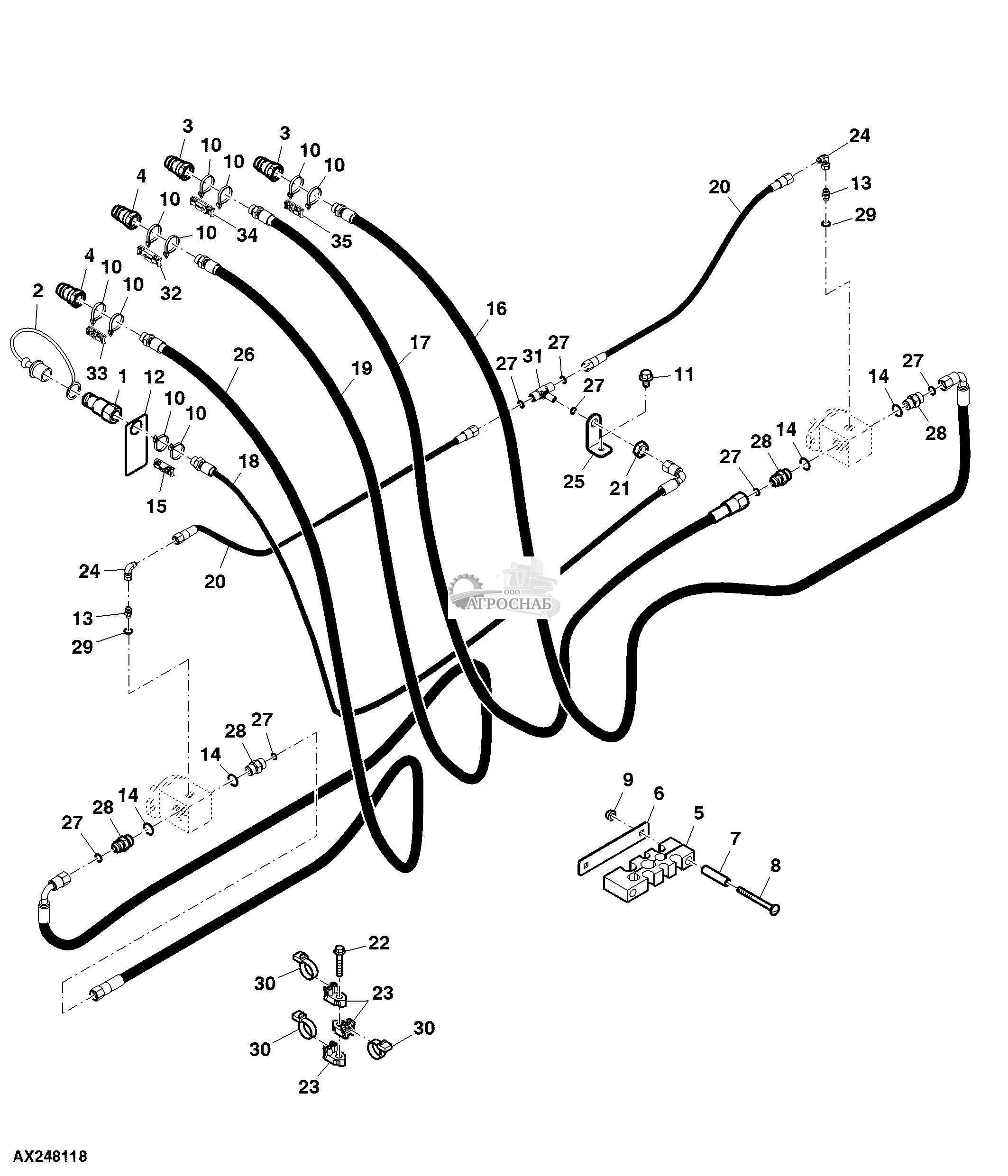

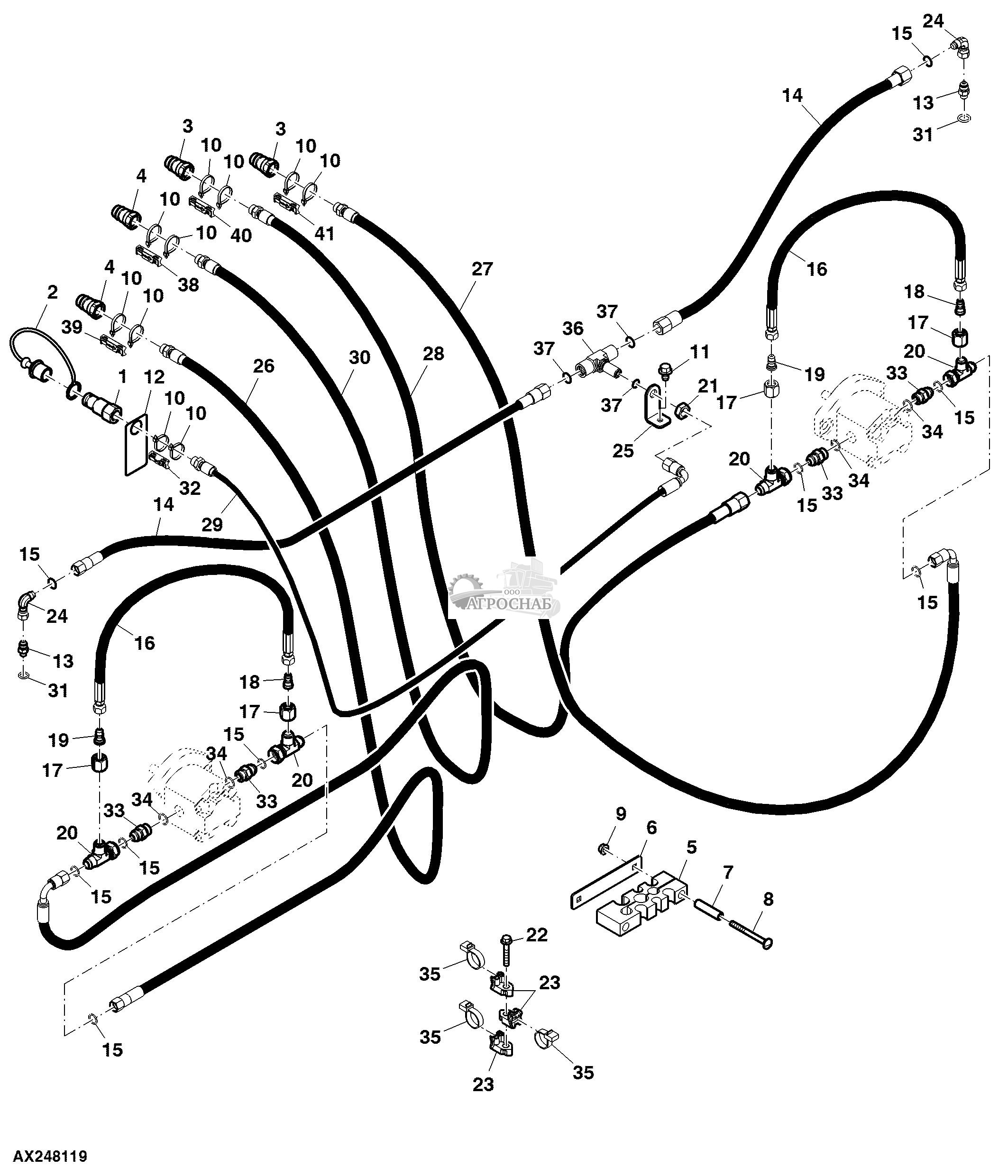

Vacuum Hoses, Two Blowers, W/ Hydraulic Bypass Loop(Вакуумные Шланги Две Воздуходувки W-Гидравлическое Обхода Контура)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA59671 | Hydr. Quick Coupler Plug | 1 | |||
| 2 | A79901 | Plug | 1 | |||
| 3 | AR94522 | Hydr. Quick Coupler Plug | 2 | |||
| 4 | AA59411 | Hyd. Quick-Connect Coupler | 2 | |||
| 5 | A90500 | Clamp | 1 | |||
| 6 | A88987 | Plate | 1 | |||
| 7 | 28H3475 | Spacer | 2 | 0.364" X 0.540" X 2-1/8" | ||
| 8 | 03M7373 | Bolt | 2 | M8 X 85 | ||
| 9 | 14M7298 | Flange Nut | 2 | M8 | ||
| 10 | H77698 | Tie Band | 10 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | 19M7783 | Screw | 1 | M10 X 16 | ||
| 12 | A79270 | Label | 1 | |||
| 13 | R27212 | Fitting | 2 | |||
| 14 | AA78081 | Hydraulic Hose | 2 | |||
| 15 | R26375 | O-Ring | AR | |||
| 16 | AA76982 | Hydraulic Hose | 2 | |||
| 17 | T25462 | Tube Nut | 4 | |||
| 18 | A52993 | Reducer | 2 | 37 Degree Flare Tube End Reducer | ||
| 19 | A52994 | Fitting | 2 | Orificed Tube End Reducer | ||
| 20 | AN33434 | Tee Fitting | 4 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | 14H904 | Nut | 1 | 3/4" | ||
| 22 | 19M7807 | Screw | 5 | M10 X 60 | ||
| 23 | A88936 | Clamp | 15 | |||
| 24 | AE24616 | Elbow Fitting | 2 | |||
| 25 | A91586 | Bracket | 1 | |||
| 26 | AA76871 | Hydraulic Hose | 1 | |||
| 27 | AA76872 | Hydraulic Hose | 1 | |||
| 28 | AA76873 | Hydraulic Hose | 1 | |||
| 29 | AA76874 | Hydraulic Hose | 1 | |||
| 30 | AA76875 | Hydraulic Hose | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 31 | R26448 | O-Ring | 2 | |||
| 32 | ...... | Tag | 1 | (A) (B) ORDER AA78772 | ||
| 33 | 38H1161 | Adapter Fitting | 4 | |||
| 34 | T77857 | O-Ring | 4 | |||
| 35 | H224073 | Tie Band | AR | |||
| 36 | 38H1291 | Tee Fitting | 1 | |||
| 37 | T77613 | O-Ring | 3 | |||
| 38 | ...... | Tag | 1 | (C) (D) ORDER AA78772 | ||
| 39 | ...... | Tag | 1 | (C) (B) ORDER AA78772 | ||
| 40 | ...... | Tag | 1 | (E) (D) ORDER AA78772 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 41 | ...... | Tag | 1 | (E) (B) ORDER AA78772 |
Vacuum Hoses, Two Blowers, W/O Bypass Loop(Вакуумные шланги двух вентиляторов ВУ обхода контура)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA59671 | Hydr. Quick Coupler Plug | 1 | |||
| 2 | A79901 | Plug | 1 | |||
| 3 | AR94522 | Hydr. Quick Coupler Plug | 2 | |||
| 4 | AA59411 | Hyd. Quick-Connect Coupler | 2 | |||
| 5 | A90500 | Clamp | 1 | |||
| 6 | A88987 | Plate | 1 | |||
| 7 | A102129 | Spacer | 2 | |||
| 8 | 03M7373 | Bolt | 2 | M8 X 85 | ||
| 9 | 14M7298 | Flange Nut | 2 | M8 | ||
| 10 | H77698 | Tie Band | 10 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | 19M7783 | Screw | 1 | M10 X 16 | ||
| 12 | A79270 | Label | 1 | |||
| 13 | AT226667 | Adapter Fitting | 2 | |||
| 14 | T77857 | O-Ring | 4 | |||
| 15 | ...... | Tag | 1 | (A) (B) ORDER AA78772 | ||
| 16 | AA76872 | Hydraulic Hose | 1 | Vacuum Hose Pressure | ||
| 17 | AA76873 | Hydraulic Hose | 1 | Vacuum Hose Return | ||
| 18 | AA76874 | Hydraulic Hose | 1 | Vaccum Hose Case Drain | ||
| 19 | AA76875 | Hydraulic Hose | 1 | Vacuum Hose Return | ||
| 20 | AA78081 | Hydraulic Hose | 2 | Vacuum Hose Case Drain | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | T81029 | Nut | 1 | |||
| 22 | 19M7807 | Screw | 5 | M10 X 60 | ||
| 23 | A88936 | Clamp | 15 | |||
| 24 | AE24616 | Elbow Fitting | 2 | |||
| 25 | A91586 | Bracket | 1 | |||
| 26 | AA76871 | Hydraulic Hose | 1 | Vacuum Hose Pressure | ||
| 27 | R26375 | O-Ring | 7 | |||
| 28 | 38H1161 | Adapter Fitting | 4 | |||
| 29 | T77613 | O-Ring | 2 | |||
| 30 | H224073 | Tie Band | AR | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 31 | 38H1291 | Tee Fitting | 1 | |||
| 32 | ...... | Tag | 1 | (C) (D) ORDER AA78772 | ||
| 33 | ...... | Tag | 1 | (C) (B) ORDER AA78772 | ||
| 34 | ...... | Tag | 1 | (E) (D) ORDER AA78772 | ||
| 35 | ...... | Tag | 1 | (E) (B) ORDER AA78772 |
Pneumatic Downforce Hoses(Пневматическим Прижимом Шланги)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A89465 | Tee Fitting | 12 | |||
| 2 | RE258807 | Tie Band | 27 | |||
| 3 | H77698 | Tie Band | 10 | |||
| 4 | A89925 | Plug | 2 | |||
| 5 | A89924 | Tee Fitting | 1 | |||
| 6 | ...... | Hose | 10 | MF A89903 |
